UV DMD and NIR DMD Wavelength Options
UV DMD and NIR DMD chipsets and the corresponding optical system are optimized for different passbands of light. While the DMD mirror optical performance is essentially the same in all products and chipsets, DMD windows are designed for three different transmission regions:
• Ultraviolet (UV) light: 320 to 400 nm
• Visible light: 400 to 700 nm
• Near infrared (NIR) light: 700 to 2500 nm
The coating used depends on the application. UV DMD windows have special AR coatings designed to be more transmissive for ultraviolet wavelength, visible coatings for visible DMDs, and NIR coatings for NIR DMD devices.
LE4960H
The LUXBEAM® LE4960H is an open Light Engine platform for research and science that allows easy implementation of custom modifications and application related optimizations.
A broad range of building blocks such as light sources, optical configurations, or reference lenses is available. Defined interfaces enable easy configuration modifications and result in cost and time efficient product developments without compromising system performance.
Product | Part Number | Description |
|---|---|---|
| LUXBEAM® LE4960H-HY-HD | 7000130-HY-HD | Open light engine platform for hybrid applications, with 0,95” DLP9500 (visible) DMD (1920x1080p, 10,8 micron pixel pitch) and UV optical system. LED options: – 405 nm (best performance) – 395 nm and 385 nm (commodity option for cost/performance, DMD operation outside spec) |
| LUXBEAM® LE4960H-UV-HD | 7000130-UV-HD | Open light engine platform with 0,95” DLP9500 (UV) DMD (1920x1080p, 10,8 micron pixel pitch) and UV optical system. LED options: – 395 nm – 385 nm – 375 nm – 365 nm |
| LUXBEAM® LE4960H-HY-WU | 7000130-HY-WU | Open light engine platform for hybrid applications, with 0,96” WUXGA (visible) DMD (1920x1200p, 10,8 micron pixel pitch) and UV optical system. LED options: – 405 nm (best performance) – 395 nm and 385 nm (commodity option for cost/performance, DMD operation outside spec) |
LRS Light Engines
The LUXBEAM® LRS product line provides robust light engine configurations for industrial implementations, comprising various high resolution DMD micro displays and using the same highly efficient optical core as the LE4960H platform.
Based on Visitech’s advanced LB4600 formatter board configuration and spectrally optimized light engines (either for visible or UV range), static as well as dynamic industrial implementations (step-and-flash or scrolling on the fly) are supported.
Visitech’s proprietary SPX subpixelation and PPC pixel power control technology can be applied specifically in scrolling systems.
Product | Part Number | Description |
|---|---|---|
| LUXBEAM® LRS-HY-HD | 7000140-HY-HD | Integrated light engine unit for hybrid applications, with 0,95” DLP9500 (visible) DMD (1920x1080p, 10,8 micron pixel pitch) and UV optical system. LED options: – 405 nm (best performance) – 395 nm and 385 nm (commodity option for cost/performance, DMD operation outside spec)
|
| LUXBEAM® LRS-UV-HD | 7000140-UV-HD | Integrated light engine unit with 0,95” DLP9500 (UV) DMD (1920x1080p, 10,8 micron pixel pitch) and UV optical system. LED options: – 395 nm – 385 nm – 375 nm – 365 nm
|
| LLUXBEAM® LRS-HY-WU | 7000140-HY-WU | Integrated light engine unit for hybrid applications, with 0,96” WUXGA (visible) DMD (1920x1200p, 10,8 micron pixel pitch) and UV optical system. LED options: – 405 nm (best performance) – 395 nm and 385 nm (commodity option for cost/performance, DMD operation outside spec) |
4K-HLD-UV
Maximum power is accomplished with a custom version of the DDP4422 firmware specifically designed for each application. We can design the DDP4422 firmware to allow single bit with exposure times between specific durations that allow camera operation from 15-120 Hz depending on your system design requirements.
Key Features
- Texas Instruments DLP660TE DMD
- 405 nm Luminus LED
- 1.5x Synchronized Focus Zoom
- +/-65% vertical lens shift, +/- 27% horizontal lens shift (manual)
- Image size: 95″ – 180″, 100″ @ 3m
- Throw ratio: 1.36 – 2.03

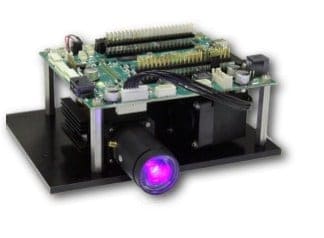

LC4500-M8-UV
The LC4500UV provides a high resolution projector for your 3D measurement and display applications using the Texas Instruments DLP4500 chipset. An on-axis projection lens with a 1.2 throw-ratio provides excellent uniformity; and short focus capability enables a wide range of applications, starting with 3D printing
LC3000G2
The Flexlight LC3000-G2-PRO is a production-ready, full-featured implementation of the Texas Instruments DLP3000 chipset and TI Lightcrafter, which includes the DLPC300 and 0.3″ WVGA DMD.

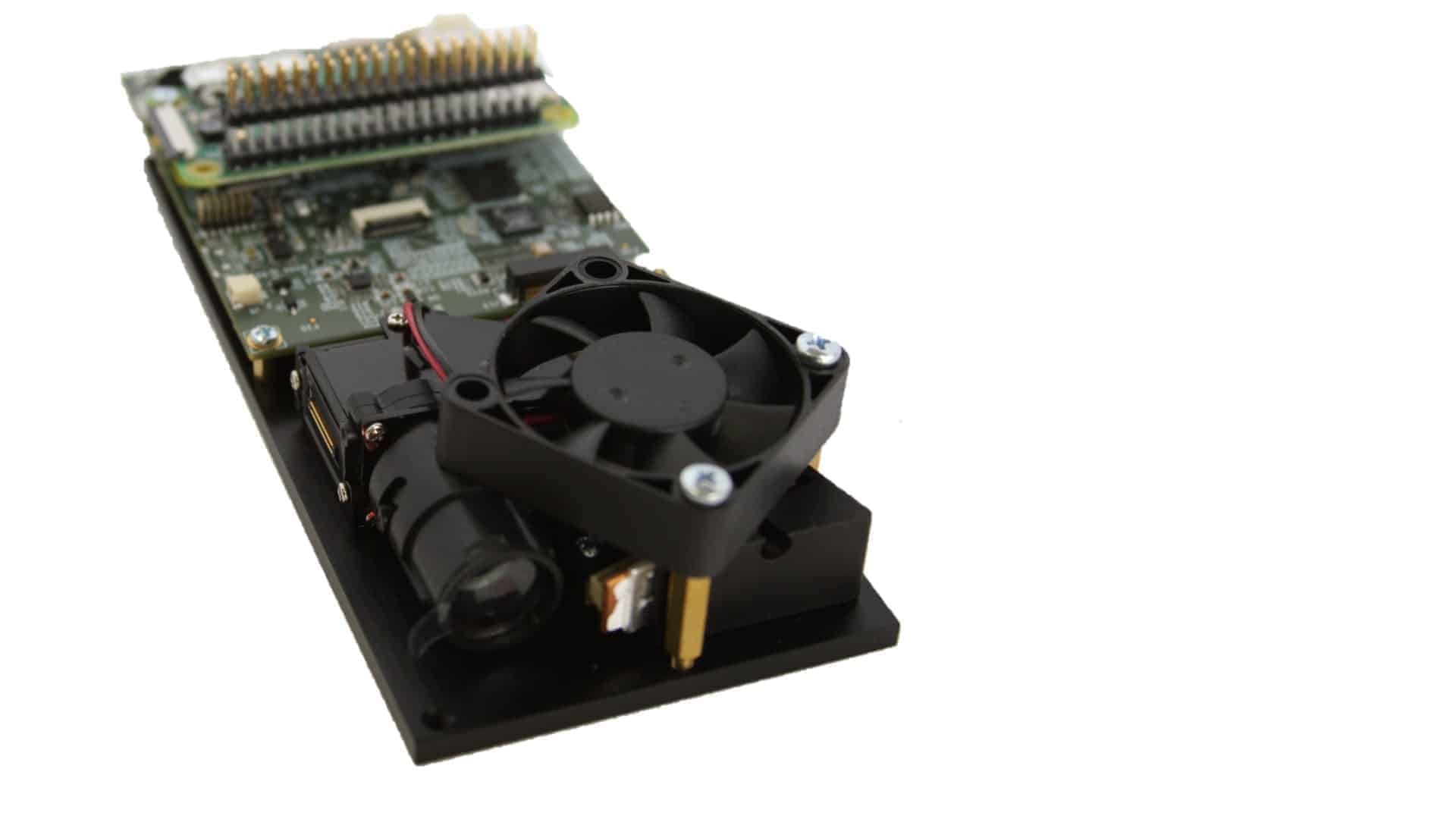

LC3000G2-Pi
The LC3000-G2-PI is customized to integrate the popular Raspberry Pi for enhanced pattern sequences and system control. The Raspberry Pi can be mechanically integrated as shown or remotely placed via HDMI and a flex control cable.

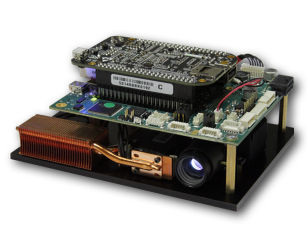

LC4500-P5
Like the Texas Instruments LightCrafter™ 4500, Keynote Photonics LC4500 projectors and electronic kits are based on Texas Instruments’ .45” WXGA DMD (DLP4500FQD, DLP4500FQE and DLP4500NIRFQE). The LC4500 controller provides a direct interface for the popular BeagleBone Black development platform based on a AM335x ARM® Cortex A8 processor, providing users the ability to stream patterns created real time into the projector. This interface connector can also be used for custom FPGA designs and has access to the system I2C and other vital trigger and control signals from the main board.
A complete streaming pattern application and API is available for the Beaglebone Black that comes with its own graphical user interface that can support Windows, Linux or Mac.

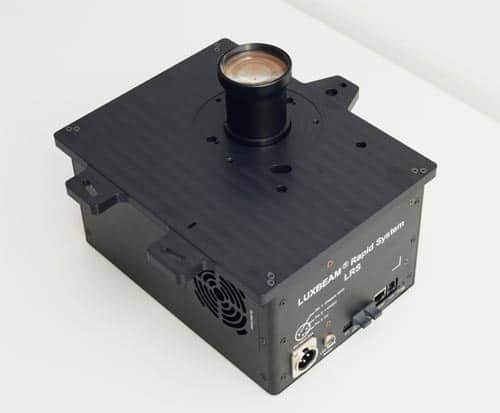

LRS Light Engines
The LUXBEAM® LRS product line provides robust light engine configurations for industrial implementations, comprising various high resolution DMD micro displays and using the same highly efficient optical core as the LE4960H platform.
Based on Visitech’s advanced LB4600 formatter board configuration and spectrally optimized light engines (either for visible or UV range), static as well as dynamic industrial implementations (step-and-flash or scrolling on the fly) are supported.
Visitech’s proprietary SPX subpixelation and PPC pixel power control technology can be applied specifically in scrolling systems.
Product | Part Number | Description |
|---|---|---|
| LUXBEAM® LE4960H-VIS-HD | 7000190-HD | Open light engine platform for visible applications, with 0,95” DLP9500 (visible) DMD (1920x1080p, 10,8 micron pixel pitch). LED options: – RED (613 nm) – GREEN (525 nm) – BLUE (460 nm) |
| LUXBEAM® LE4960H-VIS-WU | 7000190-WU | Open light engine platform for visible applications, with 0,96” WUXGA (visible) DMD (1920x1200p, 10,8 micron pixel pitch). LED options: – RED (613 nm) – GREEN (525 nm) – BLUE (460 nm) |

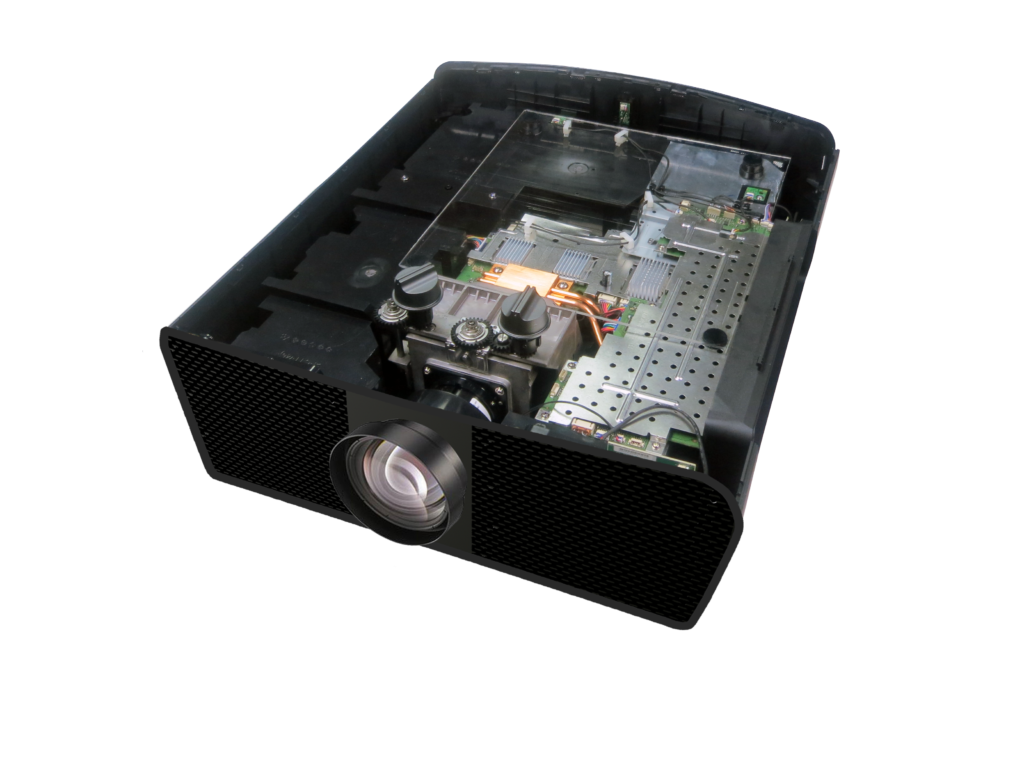

4K-UHD EVM
The FlexLight 4K-HLD projection module merges the detail and clarity of full 4K resolution with the stunning color space and black levels of the latest in illumination technology. Single visible color and 405 nm firmware solutions available.
Key Features
- Texas Instruments DLP660TE DMD
- 405 nm Luminus LED
- 1.5x Synchronized Focus Zoom
- +/-65% vertical lens shift, +/- 27% horizontal lens shift (manual)
- Image size: 95″ – 180″, 100″ @ 3m
- Throw ratio: 1.36 – 2.03
LC4500-NIR-EKT
The Flexlight 4500 product family is a production-ready, full-featured implementation of the Texas Instruments DLPC4500 chipset, which includes the DLPC350 and 0.45″ WXGA DMD. The system is fully compatible with the TI LightCrafter 4500 API and user GUI developed by TI for the DLPC4500 chipset. In addition, a MSP430 micro-controller is integrated on the main control board, allowing customized configurations and modes of the DLP chipset. Several digital and analog GPIO can be programmed for a fully customized DLP controller solution.
The DMD is mounted on a separate board connected to the drive board with a 7 cm flexible cable. You may prefer to purchase an optional 30 cm cable, enabling you to locate the drive electronics away from the DMD and optics.
