Keynote Photonics offers a comprehensive line of DLP chipsets for 3D Measurement, maskless lithography, UV Exposure, 3D Printing and near infra-red (NIR) spectroscopy. Each DMD contains up to 8 million individually controlled micromirrors built on top of an associated CMOS memory cell, which modulates the amplitude, and direction of an incoming light-bundle and directs it through an lens system.

A DMD is a digital imaging chip that reflects light to project and display patterns and images.  The DLP portfolio offers devices with mirrors that deflect at +/-12° states as well as +/-17° states. The digital nature of the DMD mirror structure provides unparalleled stability of light control over thousands of hours of operation allowing the virtually unchanged performance as the first day of operation.

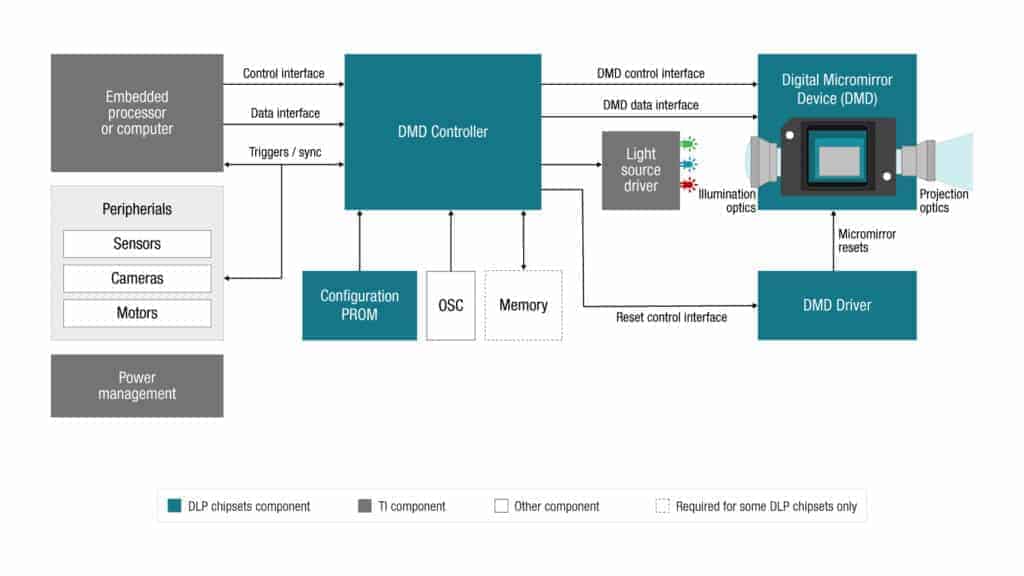

dlp-chipset-diagram

DLP660TE

LRS-4KA Electronics Controller

The LC4KA-EKT provides a complete controller for the DLP660TE chipset supporting both 3D Printing, UV exposure or 3D measurement applications.

The integrated dual-DLPC4422 controller can operate in both single-color and 3-color RGB mode. Video inputs ports include both DisplayPort and HDMI but pre-loaded patterns can also be displayed from the systems internal flash memory. This flexibility supports a wide variety of applications.

4K-UHD images are created using an external optical actuator using the native resolution of the DLP660TE (2716×1528).

Features

  • Texas Instruments DLP660TE (2716×1528)
  • DLL API and development GUI
  • DisplayPort or HDMI input
  • Pixel shift actuator support
  • Trigger Input and Output
  • Flex-cable interface to discrete DMD board
  • 8 M addressable pixels with optical pixel shifting
  • Monochrome or RGB LED operation
  • 5.4 𝛍m pixel pitch
  • 17 degree tilt angle for high-efficiency optics
  • Custom flex-cable lengths available (special order)
  • Compact size: Main Board 175mm x 120mm; DMD Board 65 x 120 mm

DLP4500

The Flexlight 4500 product family is a production-ready, full-featured implementation of the Texas Instruments LightCrafter4500 chipset, which includes the DLPC350 and 0.45″ WXGA DMD.

Need to place the DMD far away from your electronics? Want to quickly support image downloads without having to flash new image data each time? Prefer direct Ethernet support? The LC4500 offers more than TI’s standard kit.

LC4500 Electronics Controller KitLike the Texas Instruments LightCrafter™ 4500, Keynote Photonics’ LC4500 projectors and electronic kits are based on Texas Instruments’ .45” WXGA DMD (DLP4500FQD, DLP4500FQE and DLP4500NIRFQE). The LC4500 controller provides a direct interface for the popular BeagleBone development platform based on a AM335x ARM® Cortex A8 processor, providing users the ability to stream patterns created real time into the projector. This interface connector can also be used for custom FPGA designs and has access to the system I2C and other vital trigger and control signals from the main board.

The Flexlight 4500 product family is a production-ready, full-featured implementation of the Texas Instruments DLPC4500 chipset, which includes the DLPC350 and 0.45″ WXGA DMD.   The system is fully compatible with the TI LightCrafter 4500 API and user GUI developed by TI for the DLPC4500 chipset. In addition, a MSP430 micro-controller is integrated on the main control board, allowing customized configurations and modes of the DLP chipset. Several digital and analog GPIO can be programmed for a fully customized DLP controller solution.

The DMD is mounted on a separate board connected to the drive board with a 7 cm flexible cable.  You may prefer to purchase an optional 30 cm cable, enabling you to locate the drive electronics away from the DMD and optics.

The LC4500 controller also provides a direct interface for the popular BeagleBone development platform based on a AM335x ARM® Cortex A8 processor.  So if you select the Pattern Expansion Module (PEM) option, we attach a custom Beaglebone-Green daughtercard with pre-installed PEM firmware.  This provides you with the capability to stream patterns created in real time to the projector. You can learn more about the optional BeagleBone processor daughtercard at http://beagleboard.org/bone.

A complete streaming pattern application and API is available for the Beaglebone that comes with its own graphical user interface that can support Windows, Linux or Mac.

A MSP430 micro-controller is integrated on the main control board, allowing customized configurations and modes of the DLP chipset. This versatile controller offers single-color or 3-color display. Common applications for these kits are 3D printing, 3D measurement, and NIR spectroscopy

DLP9000

The Flexlight LC90000-EKT is a production ready solution that is fully compatible with the Texas InstrumentS’ DLP9000 chipset and API.

The major differences between the TI reference design and the LC9000-EKT are:DLP9000

  • Single micro-coax cable interconnect between the main control board and the DMD board allowing easier placement and custom lengths. Contact Keynote for your specific needs that are not offered by our standard offerings.
  • Compact  WQXGA DMD board.
  • Side mount DMD cable interface.



DLP9500, DLP9500UV

The extremely high performance LUXBEAM® 4600 DLP electronics utilizes the high speed DLP chip sets DLP9500, DLP9500UV and WUXGA and enables patterns with extremely high update rates and highest level of individual pixel control.

For easy integration, the LUXBEAM LB4600 comes with the DMD mounted on a separate DMD board and connected with a flex cable. The board size is very compact and fits a footprint of 192 x 76 mm. The LUXBEAM 4600 is a perfect solution for a whole range of high–speed industrial and emerging applications.

The LUXBEAM 4600 comes with VISITECH’s LUXWARE firmware which includes memory management, sequencing and I/O signalling. Gigabit Ethernet interface is available for fast data transfer from a host system. FW options such as image scrolling, motion control loop (e.g. for autofocus) and heat management are available upon request.

The board includes a web-server providing a ready-to-use interface without any driver installation required. Communication with Visitech’s advanced LED driver is also available through the web server.

Application areas: any high-end industrial and scientific application requiring high resolution, superior frame rates and single pixel control.





Part Number
Description
LUXBEAM® LB4600-VIS-HD7000110-VISMain controller board with flex-rigid DMD board and 0,95” DLP9500 (visible) DMD (1920x1080p, 10,8 micron pixel pitch)
LUXBEAM® LB4600-UV-HD
7000110-UV
Main controller board with flex-rigid DMD board and 0,95” DLP9500 (UV) DMD (1920x1080p, 10,8 micron pixel pitch)
LUXBEAM® LB4600-VIS-WU
7000110-WU
Main controller board with flex-rigid DMD board and 0,96” WUXGA (visible) DMD (1920x1200p, 10,8 micron pixel pitch)

As with LB4600 the LUXBEAM 4700 electronics comes with the DMD mounted on a separate DMD board and connected with a flex cable. The board size is very compact and fits a footprint of 240 x 76 mm. It is the ultimate solution for extreme performance and high–speed industrial and emerging applications.

The LUXBEAM 4700 also comes with VISITECH’s LUXWARE firmware which includes memory management, sequencing and I/O signaling. FW options such as image scrolling, motion control loop (e.g. for autofocus) and heat management are available upon request. The board includes a web-server providing a ready-to-use interface without any driver installation required. Communication with Visitech’s advanced LED driver is also available through the web server.

Application areas: any ultimate high-end industrial and scientific application requiring high resolution, superior frame rates and single pixel control with maximum on-board storage and/or data transfer rates from host system.



Part Number
Description
LUXBEAM® LB4700-VIS-HD7000230-VISMain controller board with flex-rigid DMD board and 0,95” DLP9500 (visible) DMD (1920x1080p, 10,8 micron pixel pitch)
LUXBEAM® LB4700-UV-HD
7000230-UV
Main controller board with flex-rigid DMD board and 0,95” DLP9500 (UV) DMD (1920x1080p, 10,8 micron pixel pitch)
LUXBEAM® LB4700-VIS-WU
7000230-WU
Main controller board with flex-rigid DMD board and 0,96” WUXGA (visible) DMD (1920x1200p, 10,8 micron pixel pitch)

DLPC3478 and DLP3010

The DLPC3478 display and light controller works with the DLP3010 digital micromirror device (DMD) for 3D Measurement or specialty display applications. The DLPC3478 controller provides pattern sequencing for vertical or horizontal patterns, both 1-bit and 8-bit.

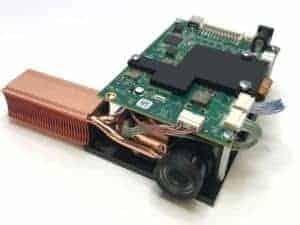

LC3010 3D scanning projector

Key Features of our DLP3010 3D acanning projector:

  • Designed to support customer software development.
    • Keynote SDK with multiple OS support
    • Enhanced development GUI supports sharing project information between engineering staff
    • Pattern libraries and pattern sequences  definable with offline tools and easily imported into GUI
    • Ability to save up to 64K complete projector configurations as solutions and recall with a single software command
  • Designed for physical integration into customer end equipment
    • All user connections available on a single high-retention standard connector
    • Primary user connections all located at rear of projector
    • Multiple mounting holes
  • Compact Form Factor
    • Keynote LC3010: 110x70x37mm, 210g (production configuration without heat pipe)
  • Other
    • USB-HID communication and control
    • Optional optocoupled trigger interface
    • Expansion interface for HDMI daughtercard
    • Support for external thermistor
    • Fan drive control

The DLPC3478 provides the following critical light control features:

  • Pattern Display Optimized for Machine Vision and Digital Exposure
  • Flexible Internal (1D) and External (2D) Pattern Streaming Modes
    • Programmable Exposure Times
    • High Speed Pattern Rates Up to 2500 Hz (1-bit) and 360 Hz (8-bit)
  • Programmable 2D Static Patterns via Splash
  • Internal Pattern Streaming Mode Enables Simplified System Design
    • Eliminates Video Interface Requirement
    • Store >1000 Patterns in Flash Memory
  • Flexible Trigger Signals for Camera/Sensor Synchronization
    • One Configurable Input Trigger
    • Two Configurable Output Triggers

A zero offset version of the DLP3010 is under development.  More information on the LC3010-GL is here

DLPC3479 and DLP4710

This product is under development. Please click the button below to get our product preview.

LC4710
LC4710 Concept

DLP9000X

The FlexLight LC9000X from Keynote Photonics is designed specifically for applications which require the highest resolution and speed. The controller supports the TI DLPC910 and the DLP9000X DMD to drive more than 60 Gbit/second.

A flexible ARM Cortex A8 “Sitara” processor manages the overall system interface, allowing nearly unlimited streaming patterns or custom application development.



Please contact us for your customized solution.

Key Features:

  • Single micro-coax cable interconnect between the main control board and the DMD board allowing easier placement and custom lengths.
  • Compact WQXGA DMD board.
  • ‘Side entry DMD board interface
  • 0.9” WQXGA DLP9000X Chipset by Texas Instruments
  • 61 Gbit per second pixel data rate.
  • External Light Source Synchronization and Triggering.
  • Sitara ARM Cortex A8 Control Processor with Linux 3.8 Kernel
  • Windows control GUI and API
  • Ethernet and USB Interface
  • 16 Gbit DDR3 Pattern Storage

LC9000X
